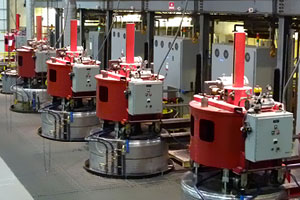

HIP Capabilities & Equipment
- Thirteen (13) Units up to 30" in Dia. & 105" High
- Pressures up to 30,000 psi (207 MPa)
- Temperatures to 2550° F (1400° C)
- ISO 9001 & AS9100 Certified, NADCAP Accredited
- Approved by P&W, GE, RR, Lockheed, Safran...
PTI offers a broad range of hot isostatic pressing processing (HIPping) capabilities. Our modern, state-of-the-art facilities are designed for cost-effective handling of customer requirements include 16" diameter to 30" diameter high pressure production units. Our 7-day, 24-hour operations allows PTI to offer excellent turnaround. The molybdenum furnace with argon atmosphere vessels can provide enhanced cooling capabilities, R&D capabilities, pressures to 30,000 psi, and temperature capabilities to 2550° F.
PTI's quality system is Nadcap, ISO 9001 and AS9100 Certified. We are an approved supplier to the aerospace industry including Alstom, Avio, Eaton, GE, Hamilton Sundstrand, Honeywell, IHI, Lockheed, MTU, NASA, Parker, Pratt & Whitney, Rolls-Royce, Snecma, Siemens, SpaceX, Textron, Timken, Volvo and Wood Group. All PTI hot isostatic pressing equipment performs within stringent customer requirements and is exceptionally reliable. PTI maintains all of the HIPping equipment and stocks a controlled inventory of back up components. The result? Over 99% uptime.
Unit 2
Unit 4
Unit 10
Warminster, Pennsylvania
| Unit | Diameter | Length | Maximum Temp. | Maximum Pressure |
|---|---|---|---|---|
| HIP2 | 16" (405 mm) |
42" (1068 mm) |
2550° F (1400° C) |
15,000 PSI (103 MPa) |
| HIP4 | 20" (505 mm) |
60" (1520 mm) |
2550° F (1400° C) |
30,000 PSI (207 MPa) |
| HIP5 | 30" (760 mm) |
70" (1780 mm) |
2450° F (1340° C) |
25,000 PSI (170 MPa) |
| HIP12 | 30" (760 mm) |
105" (2667 mm) |
2450° F (1340° C) |
25,000 PSI (170 MPa) |
Concord, Ohio
| Unit | Diameter | Length | Maximum Temp. | Maximum Pressure |
|---|---|---|---|---|
| HIP3 | 16" (405 mm) |
42" (1068 mm) |
2550° F (1400° C) |
15,000 PSI (103 MPa) |
| HIP6 | 30" (760 mm) |
90" (2285 mm) |
2450° F (1340° C) |
25,000 PSI (170 MPa) |
| HIP7 | 30" (760 mm) |
90" (2285 mm) |
2450° F (1340° C) |
25,000 PSI (170 MPa) |
| HIP8 | 30" (760 mm) |
90" (2285 mm) |
2450° F (1340° C) |
25,000 PSI (170 MPa) |
| HIP9 | 30" (760 mm) |
90" (2285 mm) |
2450° F (1340° C) |
25,000 PSI (170 MPa) |
| HIP10 | 30" (760 mm) |
105" (2667 mm) |
2450° F (1340° C) |
25,000 PSI (170 MPa) |
| HIP11 | 30" (760 mm) |
105" (2667 mm) |
2450° F (1340° C) |
25,000 PSI (170 MPa) |
Alachua, Florida
| Unit | Diameter | Length | Maximum Temp. | Maximum Pressure |
|---|---|---|---|---|
| HIP14 | 30" (760 mm) |
90" (2285 mm) |
2450° F (1340° C) |
25,000 PSI (170 MPa) |
| HIP15 | 30" (760 mm) |
105" (2667 mm) |
2450° F (1340° C) |
25,000 PSI (170 MPa) |
All PTI units use molybdenum furnaces and virgin argon atmosphere.
